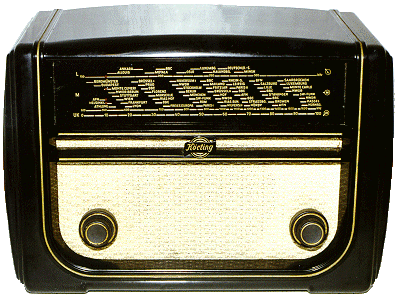

Case: black bakelite
Size: (w/h/d) 34 x 23.5 x 16 cm
Loudspeakers: 1
Antennas: metal part of the backplane
Frequencies/Bands: LW, MW, FM , 12 circuits
Power: 110/127/220 V AC,
Tubes/Semicond.: 5 tubes ECH 42, EF 41 (or EAF 42) , EAF 42, EL 41, AZ 41
Originally priced: DM 218,-
Condition: excellent
Comments: I repaired this magnificent set for a friend, after replacing 15 caps and the rectifier tube it is playing like brandnew now. The old tar sealed caps had changed their value by + 100-300 % probably from humidity. The circuit of this set is really tricky - naming the set: Reflexcircuit, i.e. the AF is "reflexed" to the first IF tube (EF41), this is used twice: as IF amplifier and as AF pre-amp!! And there is a mains transformer only for the filament voltage - but the anode/plate voltage comes directly from rectified mains (depending how you plug the mains - the chassis is on ground or mains potential!!).
